Description

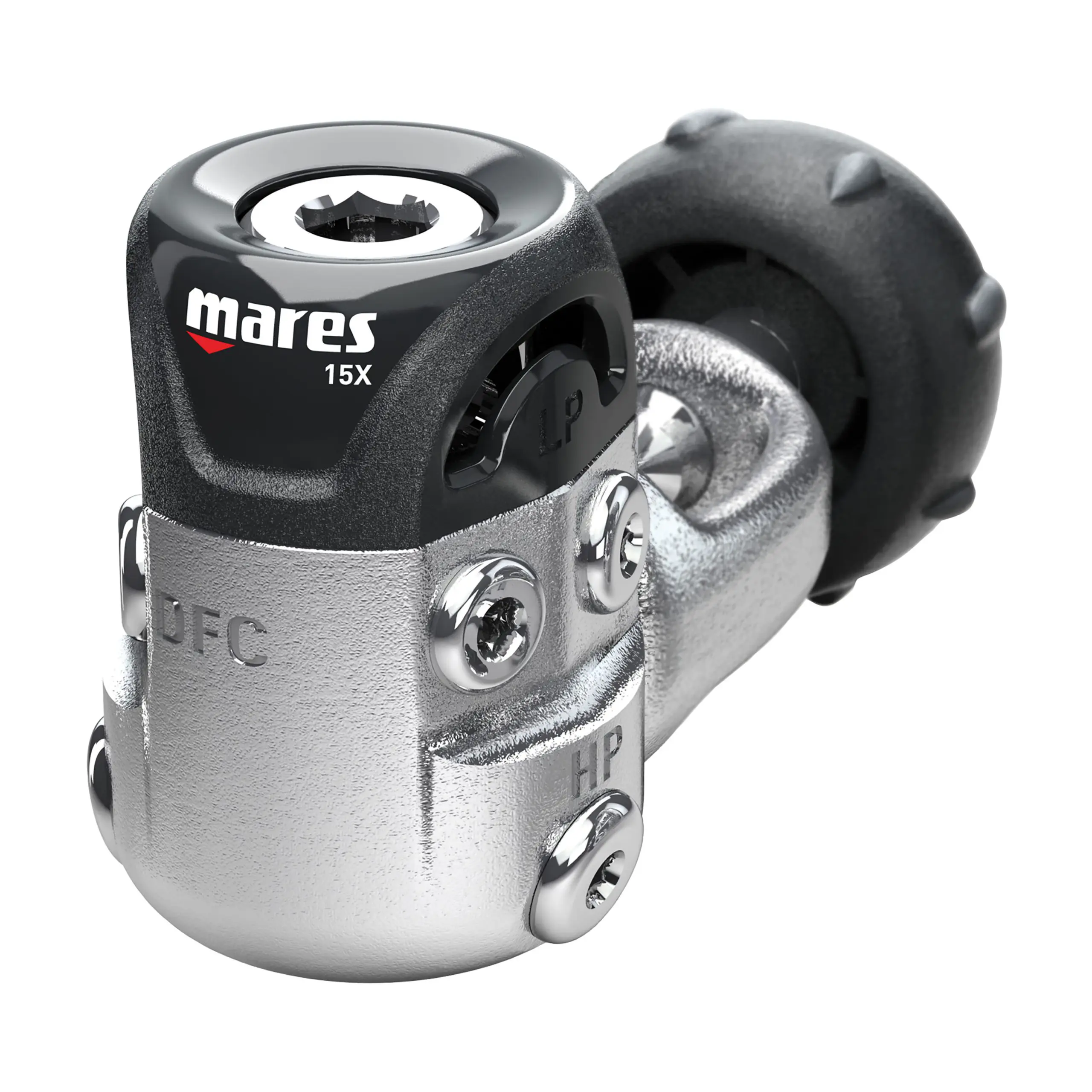

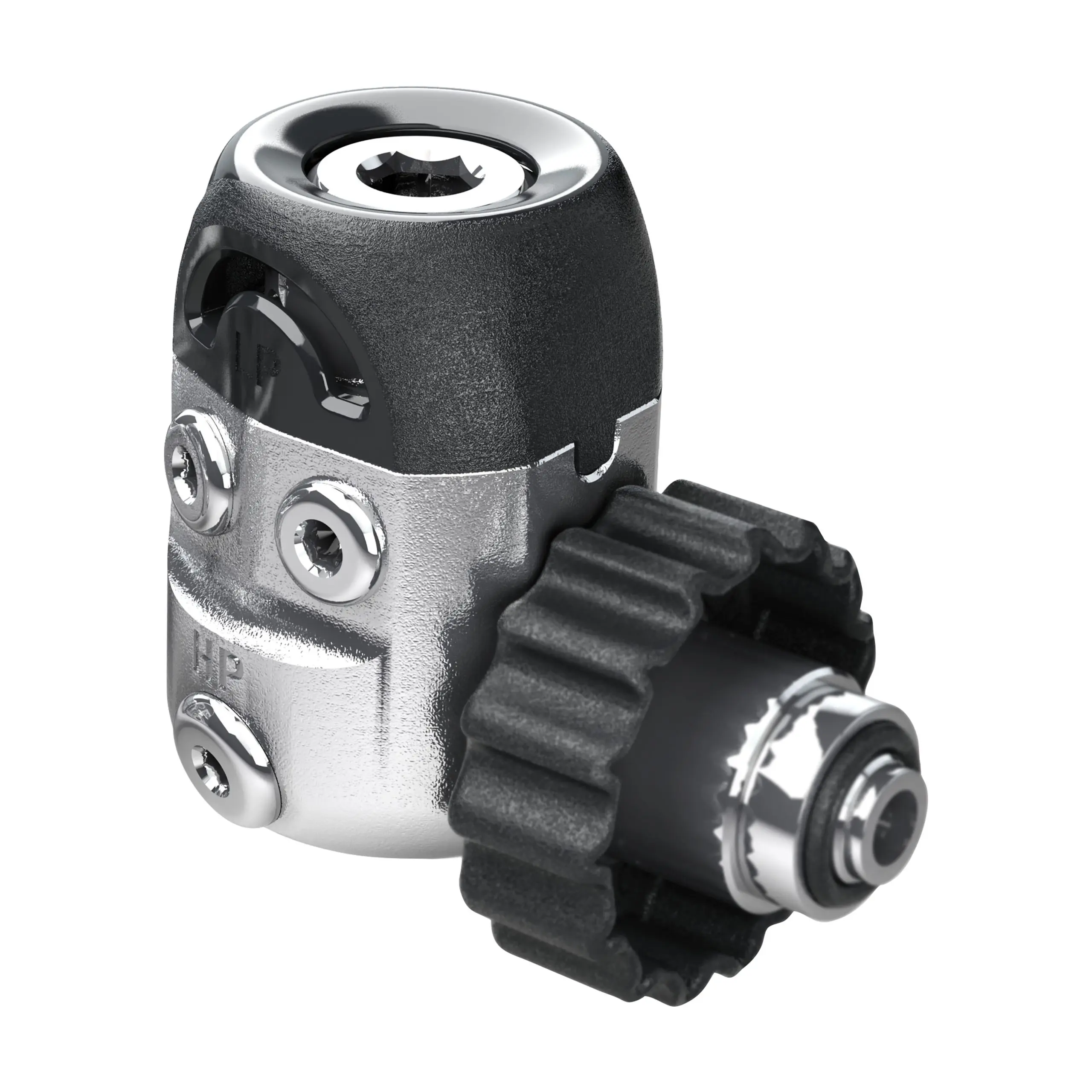

15X First Stage
The 15X first stage has one DFC port and pre-oriented ports, also making it suitable for octopus configuration. It is very compact with a sandblasted finish.
The DIN300 balanced membrane first stage weighs 598g. The INT version weighs 772g.

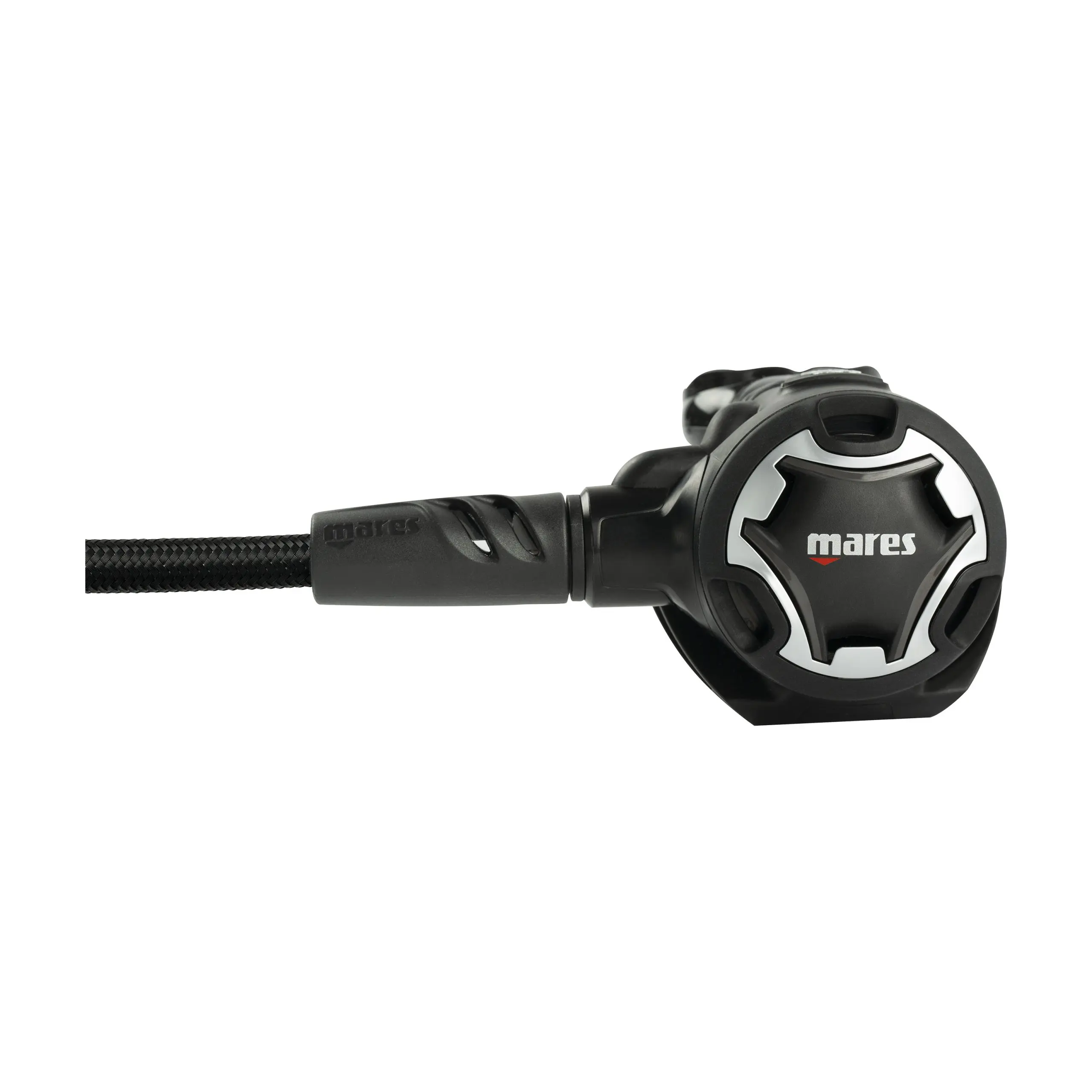

Dual second stage
The Dual second stage is made of ultra-lightweight technopolymer, which considerably reduces its weight (it weighs only 183 g). It has a pneumatically assisted (P.A.D.) design that ensures high airflow. Equipped with a Superflex hose.
| Material | Ultralight Technopolymer |
| Finish | Sandblasted |
| First stage | Balanced Diaphragm |
| First stage weight INT | 772 g / 27.2 oz |
| First stage weight DIN | 598 g / 21.1 oz |
| Second stage weight | 183 g / 6.4 oz |
| Total weight (g) INT | 1085 g / 70 oz |
| Total weight DIN | 911 g / 32.1 oz |
| High pressure ports | 2 HP 7/16” UNF Ports |
| Low pressure ports | 4 LP 3/8” UNF Ports |
| Hose type | Superflex Hose |
| Hose length | 75 cm |
